Traffic Controller Pool

A Traffic Controller (TC) pool is a grouping of A, AAAA, or CNAME records that extends SiteBacker as a Global Server Load Balancing solution. Traffic Controller and SiteBacker pools are very similar in their makeup, therefore in this guide, certain tabs may be referred back to the SiteBacker section that has already explained their usage.



Traffic Controller pools cannot contain both A and AAAA records. Individual pools will need to be created to support each of these two record types.

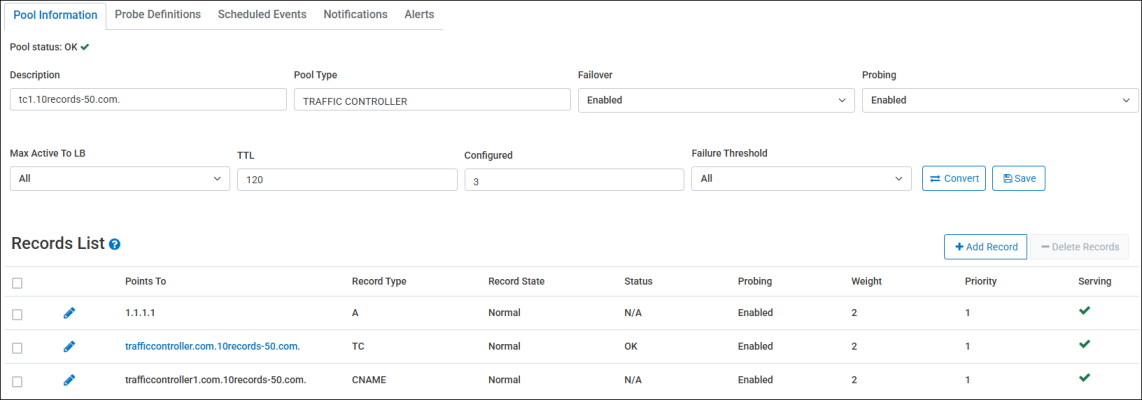

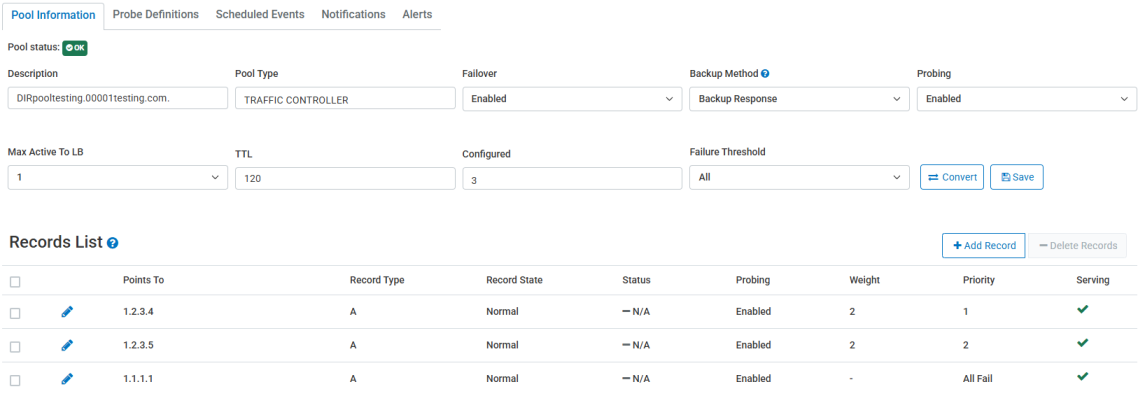

Editing a Traffic Controller Pool

Traffic Controller pools consists of various tabs of available functions and details that beyond just displaying associated records. So when editing a Traffic Controller pool, there are multiple sections that you can edit.

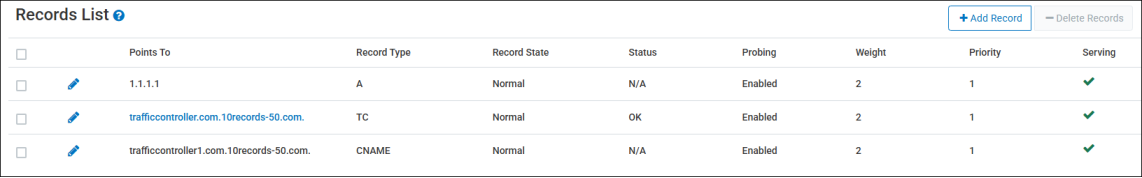

Records List

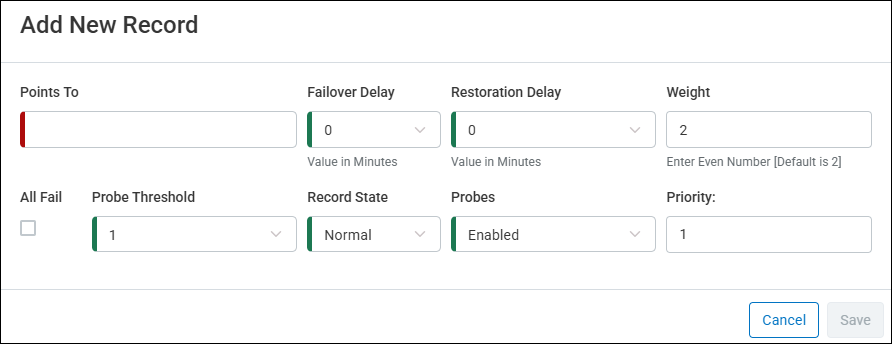

The Records List displays all of the currently associated records to the Traffic Controller pool. From this section, you can Add, Edit, or Delete records from the pool list as needed.



Traffic Controller pools cannot contain both A and AAAA records. Individual pools will need to be created to support each of these two record types.



Probes

The Probes list includes Enabled (the default) or Disabled.

Tip: Combinations of the Record State and Probes states produce the following results:

  • Record State Force Active + Probes Enabled = forces a record into a served state and probes the record, but does not act on the results.

  • Record State Force Active + Probes Disabled = forces a record into a served state and does not probe the record.

  • Record State Force Fail + Probes Enabled = forces a record into a not-served state and probes the record, but does not act on the results.

  • Record State Force Fail + Probes Disabled = forces a record into a not-served state and does not probe the record.

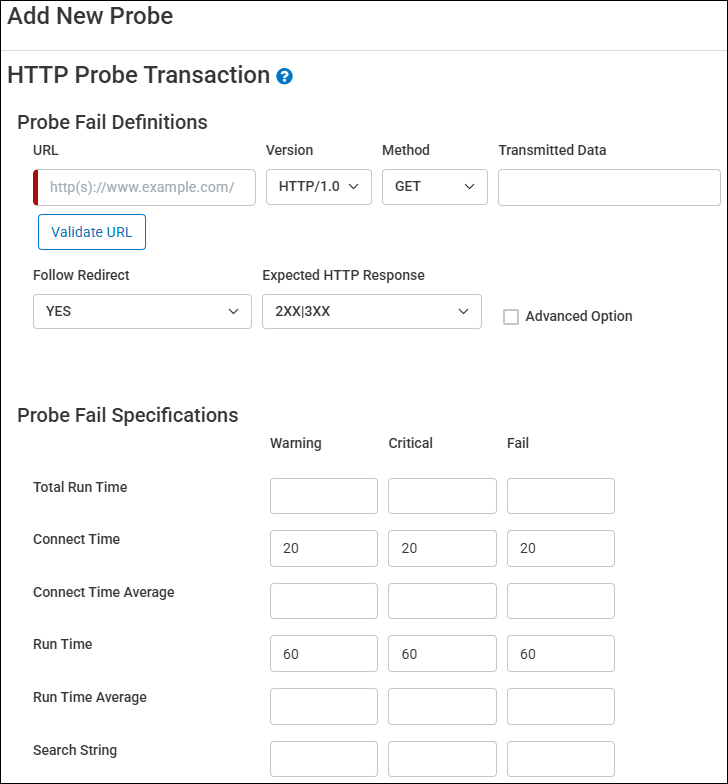

Probe Definitions

There are two types of probes:

  • Pool probes - These probe types probe all records in a pool.

  • Record probes - These probe types probe only a specific record.

Within these two types of probes, are seven probe classes: DNS, FTP, HTTP, Ping, Proxy, SMTP, and TCP.

Traffic Controller pools containing AAAA records only support TCP, HTTP, and DNS probe types.
